Mercury Racing 500R
Experience elevated power and technology created exclusively for owners of the fastest luxury sport boats. Producing 500 supercharged horsepower, the Mercury Racing V8 500R introduces a host of new components in the powerhead, cooling system, midsection, gearcase and steering system, each engineered to harness the raw power produced by this engine and to meet the challenging demands of Wide Open performance boating.

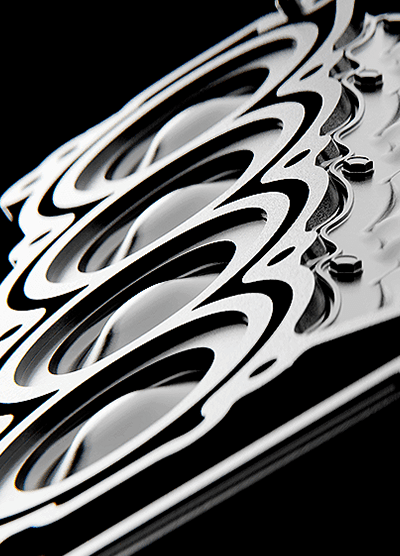

STOUT POWERHEAD
Built from the inside out for rugged performance. Our new 4.6L V8 powerhead features upgraded components support to a scaled-up power output and deliver reliability you can count on.

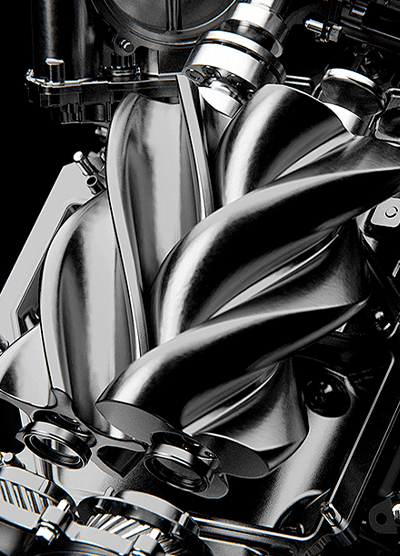

BIGGER BOOST
Our power prescription calls for a 26% increase in supercharger boost pressure. Air flow is optimized with a larger intake attenuator and a new 92mm throttle body.
HUMIDITY COMPENSATION TECHNOLOGY
More power in every environment. For the first time in any marine engine, a new sensor measures the humidity level of the intake airflow to maintain the most aggressive calibration and optimize performance under virtually all conditions.

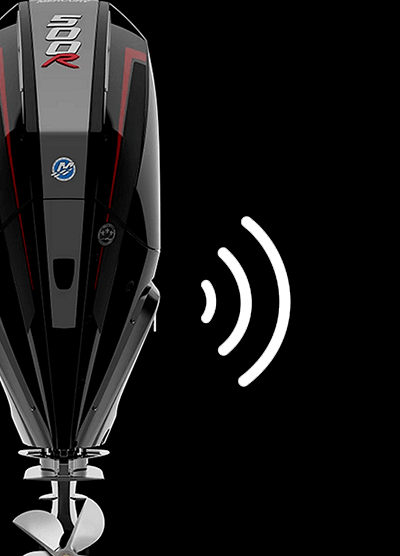

FEEL THE POWER
The dual muffler system of Advanced Sound Control offers the option of a deep sport tone with a stirring growl on start-up.

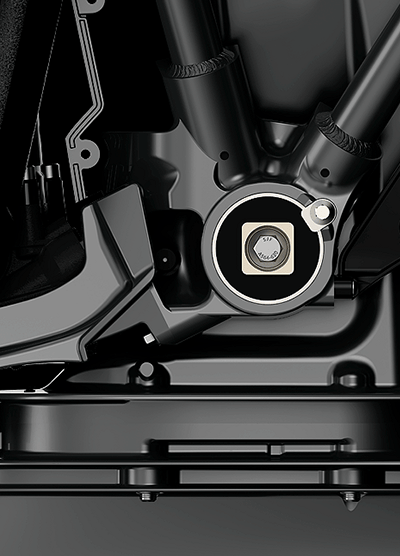

CORE STRENGTH
Mercury Racing has engineered the Advanced Racing Core (ARC) midsection to compliment the extreme thrust and high-speed capability of the 500R outboard. This is the strongest, stiffest and most-durable midsection ever created by Mercury Racing, and it is exclusive to the 500R outboard.
Characteristics
| Horsepower (HP/KW) | 500 / 372
|
|---|---|
| Full Throttle RPM | 6000-6600
|
| Engine Type | V8 (64 Degree) with 32-Valve Dual Overhead Cam (DO- HC) |
| Displacement (LITER/CID) | 4.6 / 281
|
| Induction System | Supercharged with Charge Air Cooling and Electroni- c Boost Control |
| Fuel requirements | Unleaded Regular 89 Octane Minimum (R+M/2) or 95 R- ON |
| Oil requirements | MRX 10W-30 or Mercury 10W-30 Full Synthetic
|
| Charging (AMP/WATT) | 115 / 1449
|
| Steering | Hydraulic or JPO Electric |
| Throttle & Shift | Digital Throttle & Shift (DTS)
|
| Mid Section | Advanced Racing Core (ARC)
|
| Integrated Rear Bar bracket | Available |
| Shaft lengths (INCH) | 20, 25, 30, & 35 |
| Gear case | R-Drive, R-Drive Sport
|
| Gear ratio | 1.60:1
|
| Dry weight (LB/KG) | 726/329
|
