Avator 75e-110e
Whether you’re relaxing in the sun or chasing the fish across your favorite lake, the enhanced power of the Avator™ 75e and 110e outboards gives you the freedom to expand the horizon and amplify your adventure.
Intuitive, Innovative Features
Modular Batteries
Avator™ 75e and 110e outboards can be configured with up to four 5400Wh batteries, all connected through the 5400 Power Center for seamless integration and convenient single-point charging.
5400 Power Center
The 5400 Power Center is an integrated hub that distributes power from the battery bank throughout the system. It can also charge up to four connected batteries simultaneously from a single charging port.
Tiller Handle
The available tiller for the Avator 75e allows boaters to take control with confidence. The handle adjusts up and down for comfortable steering from any position, incorporates an integrated tilt switch and digital shift controls, and folds up when not in use.
Digital Controls
For console boats, digital remote controls deliver instant throttle response, confident shifting, and power tilt control with zero hesitation for easy, safe piloting. Controls are available in three styles to fit a range of center- and side-console mounting positions.
Power Tilt
The power tilt system makes it easy to dial in performance or raise the outboard in shallow water. You can adjust tilt effortlessly for maximum efficiency and performance.

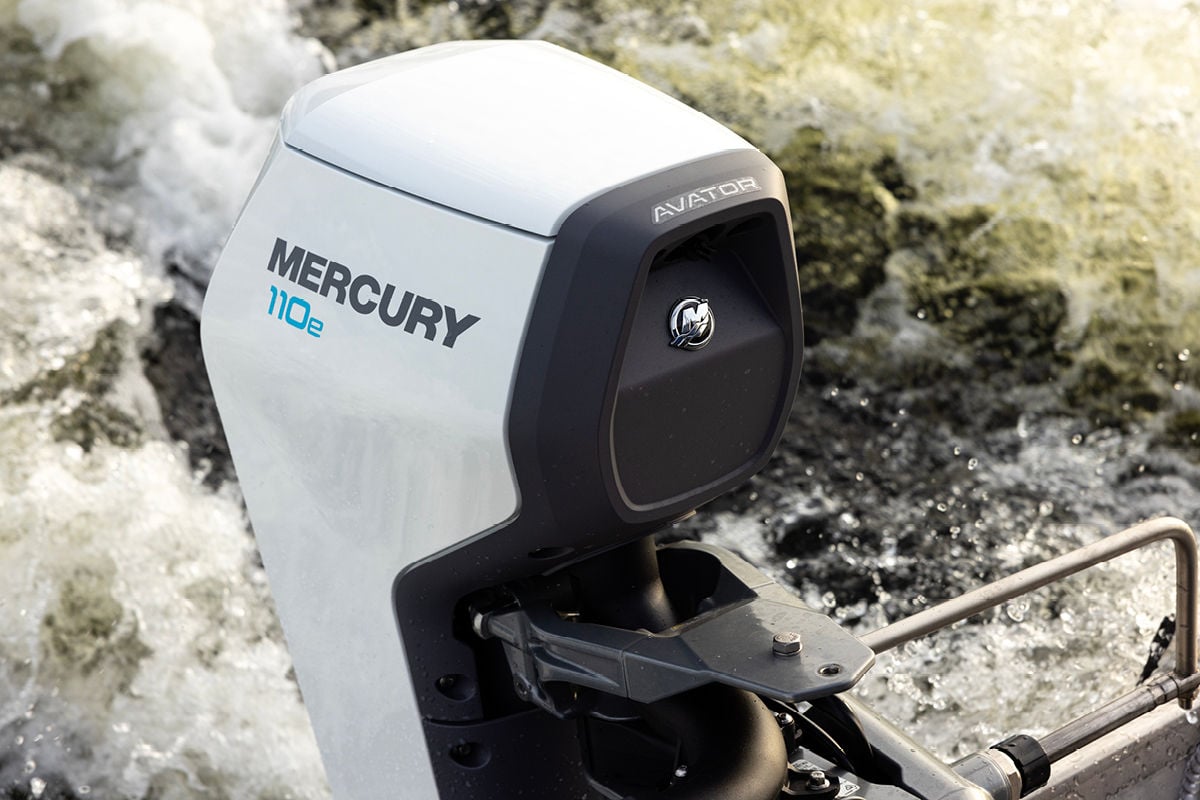

Strong Transverse Flux Motor
Industry-first transverse flux motor technology delivers immediate torque and reliable, efficient power. The motor turns a high-thrust three-blade aluminum prop that further optimizes battery life.
Avator™ Accessories and Connected Devices
Everything you need to enhance your Avator-powered adventures.
Avator Displays
Monitor your propulsion system and adjust settings from a vivid full-color display. On tiller models, the display is integrated with the outboard. Dash displays are available for boats with console steering.
Choose Your Charge Time
The portable 520W Avator™ charger can recharge two depleted 5400Wh batteries in approximately 20 hours. The vessel-integrated 1kW charger can cut the charge time by more than 50 percent.
SmartCraft Connect Mobile and the Mercury Marine App
A Mercury SmartCraft® Connect Mobile module comes pre-installed, allowing you to wirelessly connect your outboard to the Mercury Marine app. Use the app to access performance data, see visualized range estimates, connect with your dealer and more. You can even use the app to wirelessly update your Avator system, ensuring you always have the latest features.
Accessories
Avator accessory options help protect your outboard and make days on the water easier. They include a custom-fit outboard carrying bag, props, chargers and more.
Characteristics
| Model | Avator 75e | Avator 110e |
|---|---|---|
| Battery IP Rating | IP67 | IP67 |
| Battery Weight | 93 lbs / 42 kg | 93 lbs / 42 kg |
| Battery | 5376Wh - LiFePO4 | 5376Wh - LiFePO4 |
| Charger Options | 520W; 1050W | 520W; 1050W |
| Input Power | 8.6kW | 12.8kW |
| Rated Prop Shaft Power | 7500W | 11000W |
| Rated Voltage | 48V | 48V |
| Shaft Length | 15 in / 381 mm; 20 in / 508 mm; 25 in / 635 mm | 20 in / 508 mm; 25 in / 635 mm |
| Propeller Options | 8P; 9P; 10.5P | 8P; 9P; 10.5P |
| Steering | RC / Tiller | RC / Tiller |
| Total Drive Weight | 120 lbs | 124 lbs |
