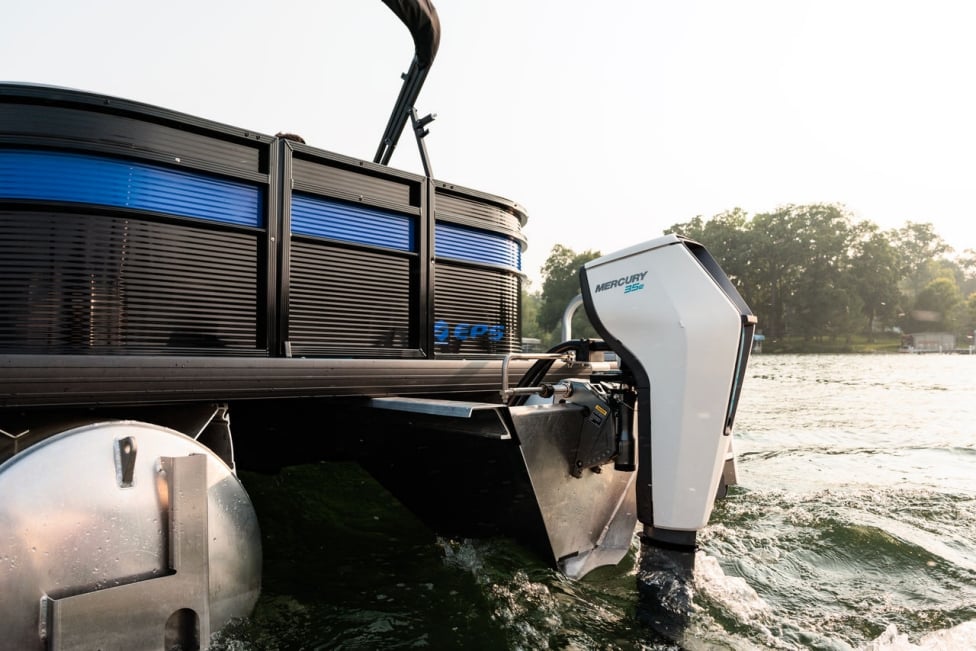

Avator 20e – 35e
From the morning bite to the evening cruise and every sandbar in between, Mercury Avator™ 20e and 35e electric outboards are engineered to empower your perfect day. Their modular batteries give you the flexibility to optimize your propulsion system for wherever your imagination leads you.
Intuitive, Innovative Features
Modular Batteries
A Mercury Authorized Dealer will work with you to outfit your boat with the battery capacity you need. You can choose to connect the 20e tiller model directly to one 2300Wh battery for peak simplicity and portability. Outboards with remote controls and the 35e model require an Avator Power Center and at least two batteries. The Power Center allows you to further extend your range and runtime with either outboard model by connecting up to four batteries.
Power Center
The Power Center is an integrated hub that distributes power from the battery bank throughout the system. It can also simultaneously charge up to four connected batteries from a single charging port.
Multi-Purpose Tiller Handle
The tiller handle adjusts up, down, left or right for comfortable steering from any position, with either hand. No tools required.

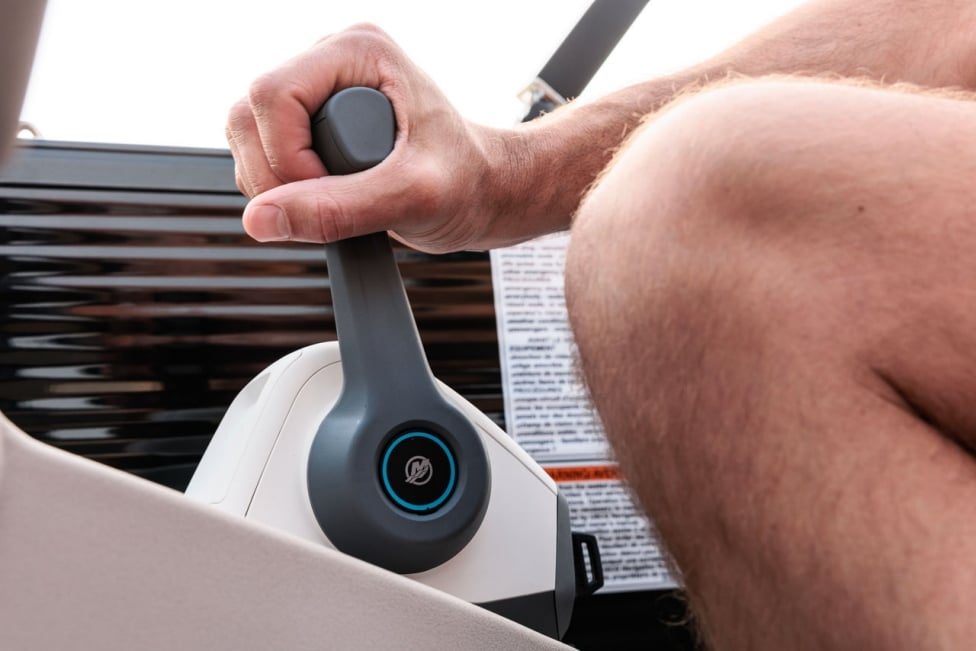

Digital Controls
For console boats, digital remote controls deliver instant throttle response, with no hesitation. Controls are available in three styles to fit a range of center- and side-console mounting positions.
Strong Transverse Flux Motor
Industry-first transverse flux motor technology delivers immediate torque and reliable, efficient power. The motor turns a high-thrust three-blade prop that further optimizes battery life.
Avator Accessories and Connected Devices
Everything you need to enhance your Avator-powered adventures.
Avator Displays
Monitor your propulsion system and adjust settings from a vivid full-color display. On tiller models, the display is integrated with the outboard. Dash displays are available for boats with console steering.
Charge One, Charge All
You can charge batteries individually or use the Power Center to charge up to four connected batteries at once. When charging individually, the 230W charger can recharge a fully depleted 2300Wh battery in about 10 hours. The 520W charger cuts the time by more than 50%.
SmartCraft Connect Mobile and the Mercury Marine App
A Mercury SmartCraft® Connect Mobile module comes pre-installed, allowing you to wirelessly connect your outboard to the Mercury Marine app. Use the app to access performance data, see visualized range estimates, connect with your dealer and more. You can even use the app to wirelessly update your Avator system, ensuring you always have the latest features.
Accessories
Avator accessory options help protect your outboard and make days on the water easier. They include a custom-fit outboard carrying bag, props, chargers and more.
Characteristics
| Model | Avator 20e | Avator 35e |
|---|---|---|
| Battery | 2300Wh | 2300Wh |
| Battery IP Rating | IP67 | IP67
|
| Battery Type | Li-Ion | Li-Ion |
| Battery Weight | 48lbs (21.7kg) | 48lbs (21.7kg) |
| Charger (Standard) | 230W or 520W available | 230W or 520W available |
| Input Power | 2700W | 4400W |
| Rated Prop Shaft Power | 2200W | 3700W |
| Rated Voltage | 48 | 48 |
| Shaft Length | 15 / 381 mm, 20 / 508 mm, 25 / 635 mm | 15 / 381 mm, 20 / 508 mm, 25 / 635 mm12.7 x 7P |
| Standard Propeller | 12.7 in x 7 pitch | 12.7 in x 7 pitch |
| Steering | RC / Tiller | RC / Tiller |
| Total Weight (Excluding Battery & Transom Bracket) | 41lbs (18.6kg) | 41lbs (18.6kg) |
| Total Weight Excluding Battery | 47lbs (21.1kg) | 47lbs (21.3kg) |
